Features
Features that set the 3DP1000 apart

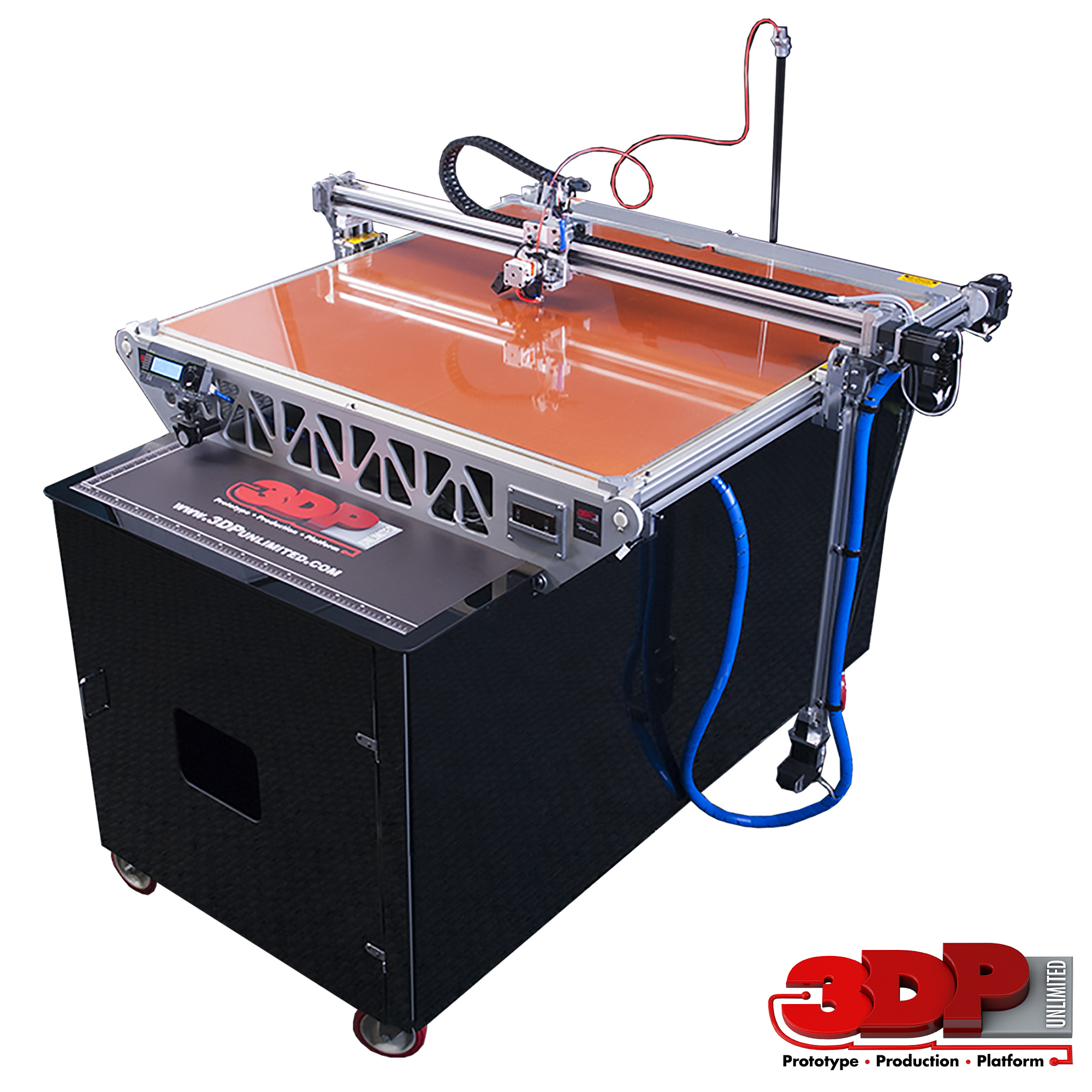

3DP1000 Large Format 3D Printer
-
Big
The 3DP1000 is truly large format, boasting a gigantic build volume with a useable area of 1 m x 1 m x 0.5 m (39″ x 39″ x 19″)
-
Economical
With platforms under $20,000, stepping up in size and performance is within reach without large capital investment
-
Accurate
Consistently produce high quality Fused Filament Fabrication (FFF) output with layer resolutions under 100 microns
-
Robust
Designed by engineers and built for engineers, the 3DP1000 is built to last with industrial strength actuators and mechatronics

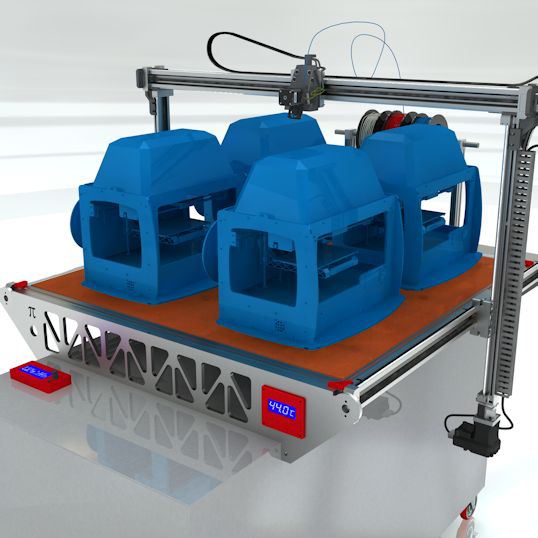

The 3DP1000 is BIG
With dimensions of 1m x 1m x 0.5m (39″ x 39″ x 19″), the huge print volume is 74x greater than the average desktop 3D printer.
*74x is based on the average build volume of a typical desktop 3D printers.
Industrial Strength Mechatronics
- Mechanics - SIMO® Series Linear Motion Actuators from PBC LInear®
- Constant Force™ lead screws with anti-backlash nuts provide repeatable accuracy over the life of the system
- Utilizing Applied Motion Products integrated stepper motor / amplifiers for simplified wiring eliminating failed cable management

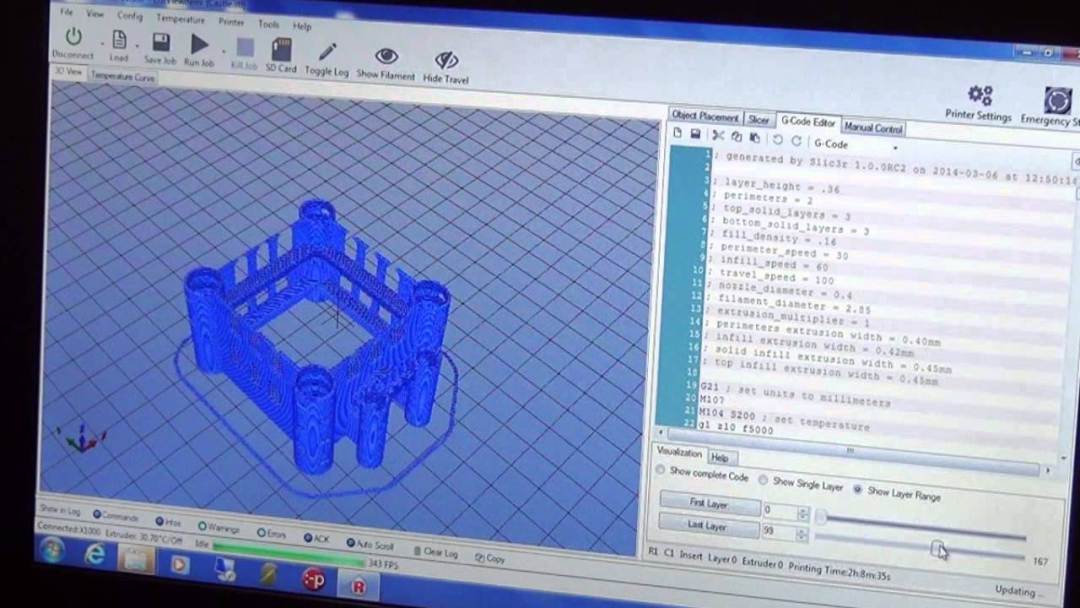

Open Source Flexibility
- Use the slicing and software of your choice including options like Repetier, Slic3r, or Simplify 3D™
- Don’t be tied to a single supplier … Use any 3mm diameter filament with a melt point below 295ºC

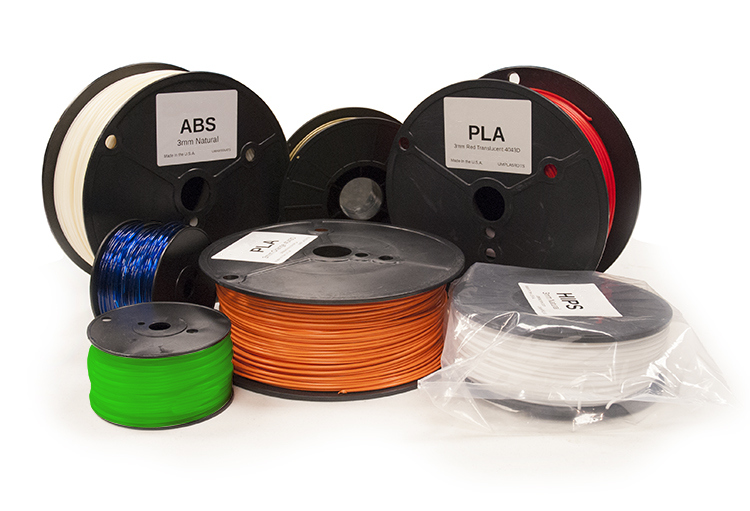

Multiple Material Capability
- 110v printers have bed temperatures up to 70°C
- Ideal for materials such as PLA and NinjaFlex®
- 220v printers bed temperatures exceed 70°C
- For use with materials such as ABS, Polycarbonate, Nylon, HIPS, PVA, and more
- 3mm diameter filament with melt points below 295°C

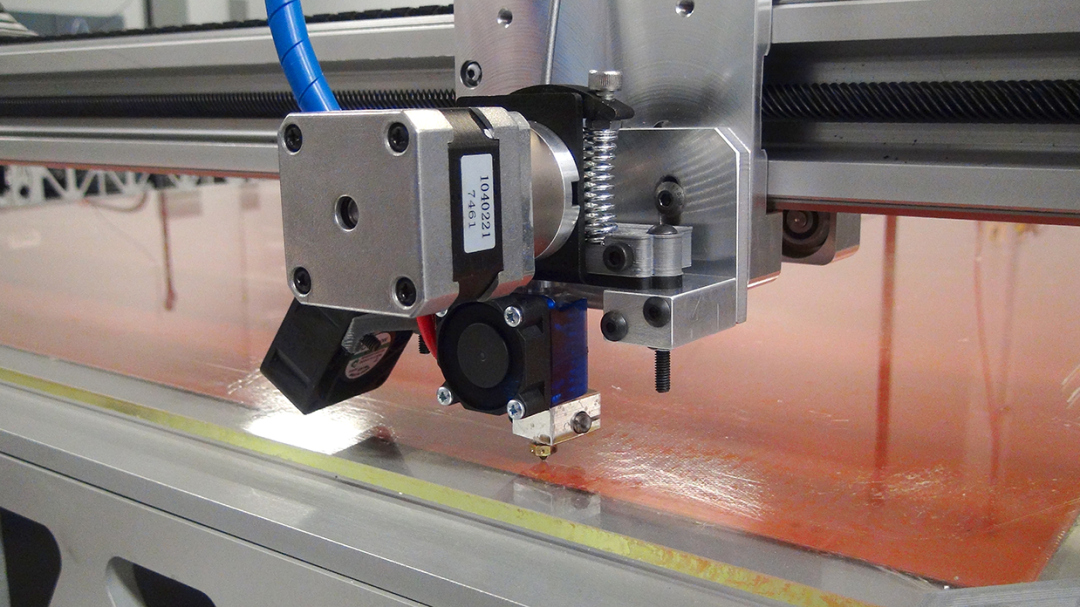

All Metal Extruder Heads
Get consistent performance from industrial all metal hot ends
- Melt points up to 295°C
- Smoothly lay down a consistent smooth bead
- High quality layer resolutions below 100 micron

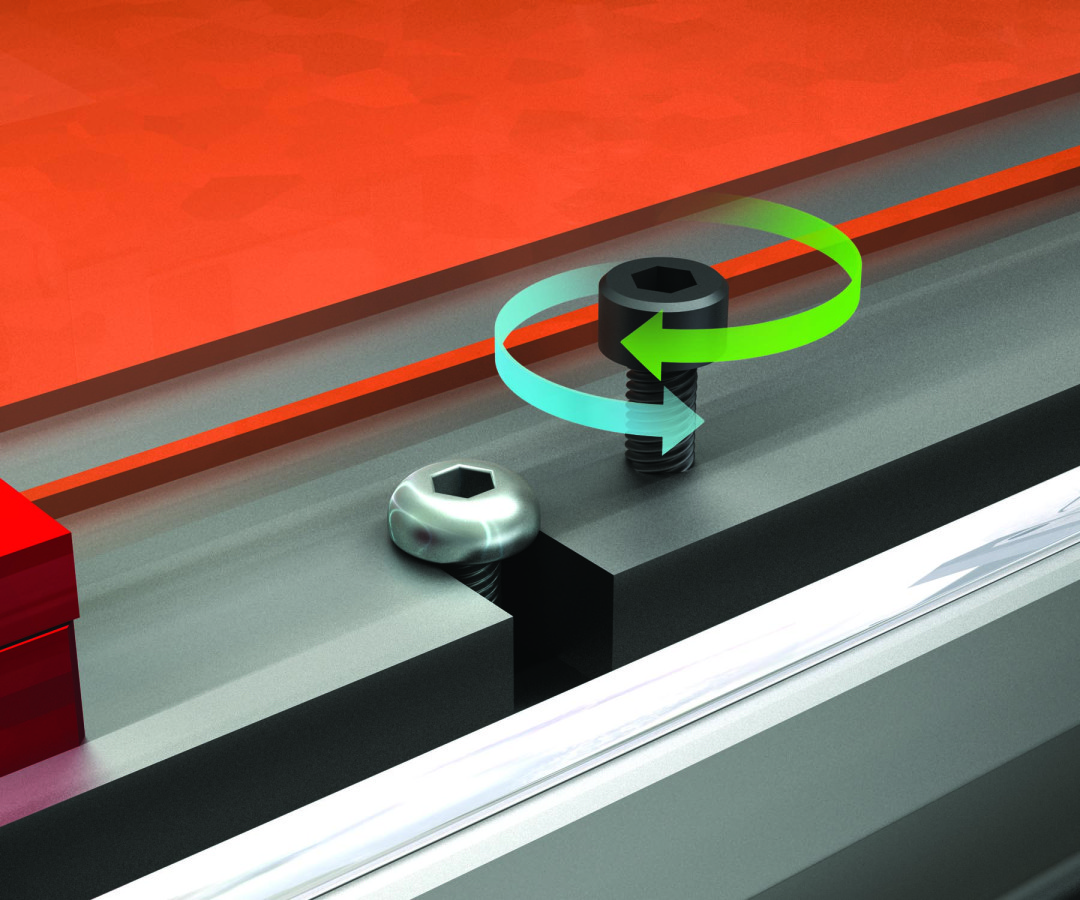

Easy Bed Leveling
- Easily access all of the adjustments to level the bed
- Pre-sliced calibration prints identify where adjustments are needed
- Lock the bed in place to hold position

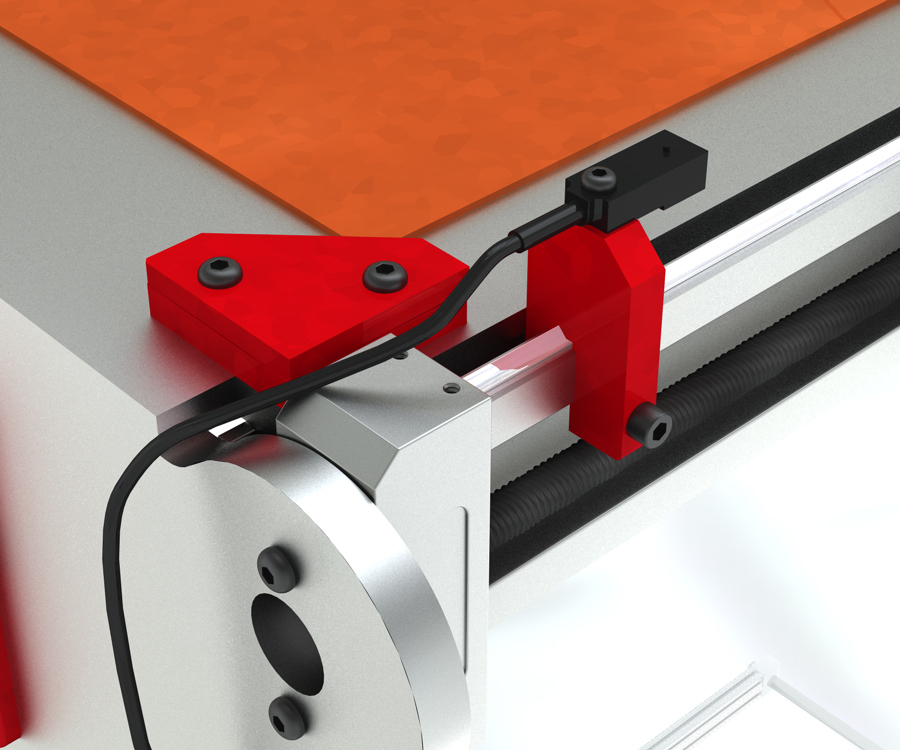

Sensors
- Multiple position sensors protect against over travel and crashes
- Easily set home position and Z-height location
